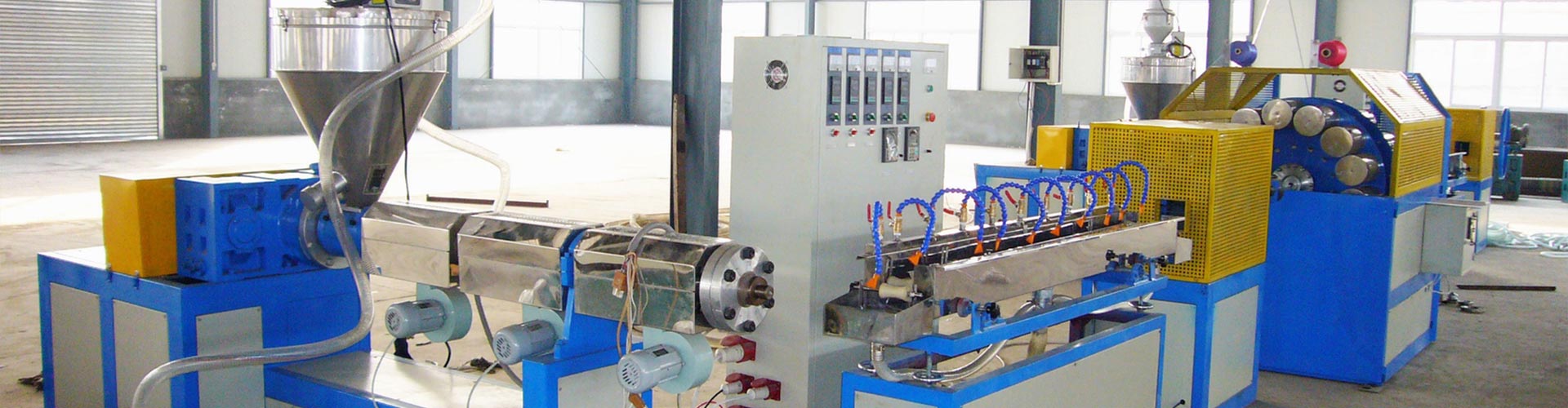

The PP PE strap band production line is mainly composed of extruder, mould, cooling tank, first traction machine, and haul oven of heat wind, second traction machine, embossing machine, calibration trough, third traction machine, coiler, and PLC control system.
The PP PE strap band production line works by melting plastic particles, pressing them into strips, forming them, cooling them, and packaging them for storage. The production line adopts automatic control, advanced technology, reasonable structure, reliable performance, is a highly efficient, highly automated production equipment, can produce to meet the needs of high-quality packaging tape.
| No | Line spec |
Capacity (kg/h) |
Strap size | Power consumption | Cooling type |
| 1 | 65 single line | 50-60 | 9-20 | 40-50kw | Water cooling |
| 2 | 65 double line | 50-60 | 9,11,13,16 | 40-50kw | |
| 3 | 75 single line | 80-9 | 9-25 | 55-60kw | |
| 4 | 75 double line | 110-120 | 11,13,16,19 | 55-60kw | |
| 5 | 90 double line | 120-160 | 9,12.7,16,19 | 70-90kw | |
| 6 |
120 four strap line or 75 parallel screw line |
250 |
32,25,19(double) 16,12.7,9(four) |
150-170kw |
The main features are as follows:
1. Accurate dosing and raw material blending 2. Preheat and dry circulating automatically 3. Even plastication, stable extrusion and exact temperature control 4. Measuring pump ensure consecutive and stable production 5. Big hauling force stretching device and insulation oven 6. Big capacity stainless steel water trough, automatic liquid level control 7. Twin Screw Extruder with Specific Design (1) 100% recycled material can be used (2) Perfect vacuum system to dispense with dehumidifies and dry (3) Power consumption of recycle material is 40% lower than raw material
Applications:
This strap band production line is used to produce mechanical or manual bands with 100% PP recycled granules as materials, if raw materials, it will be better. This kind of band is widely used in the packing of kinds of fields such as mines, general merchandise, weaving, electrical equipment, apparatus, architecture, medicine, etc.
1.Material: PP, PET
2. Strap band: 9-32mm
